DXF CAD Files ONLY – No Physical Product Included

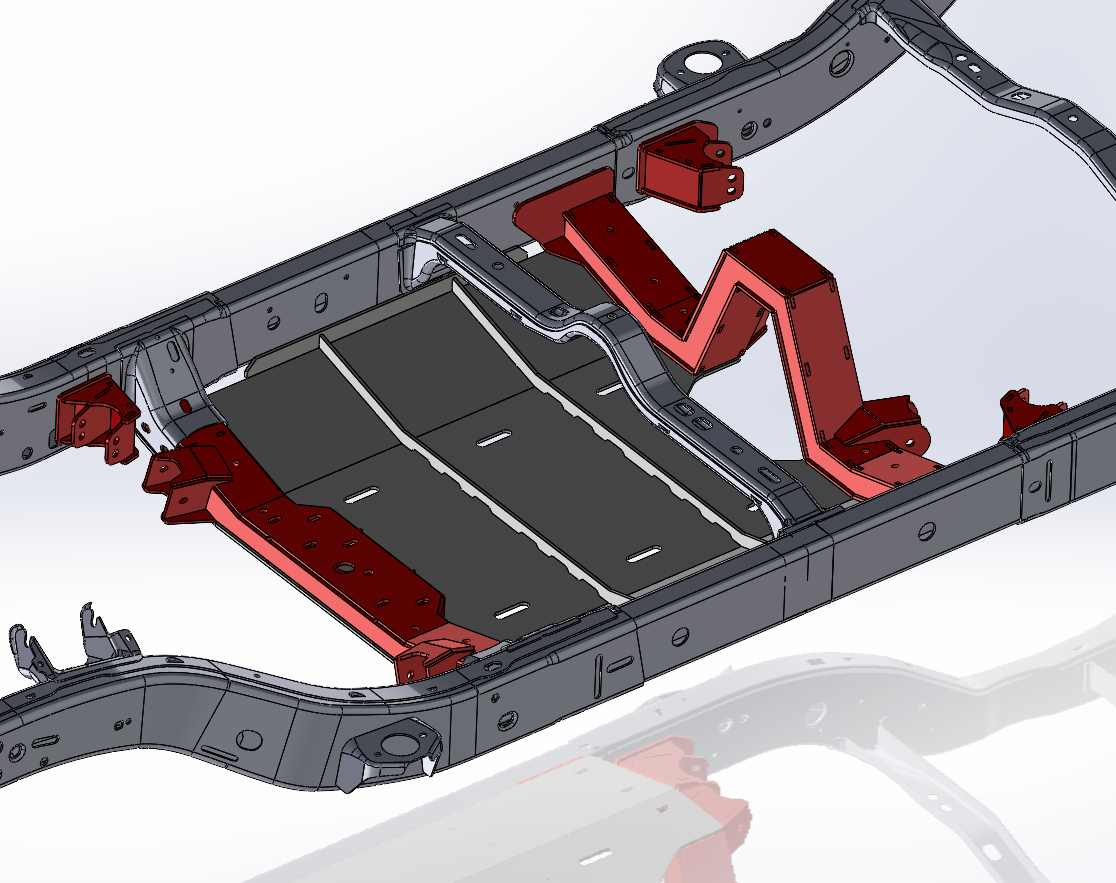

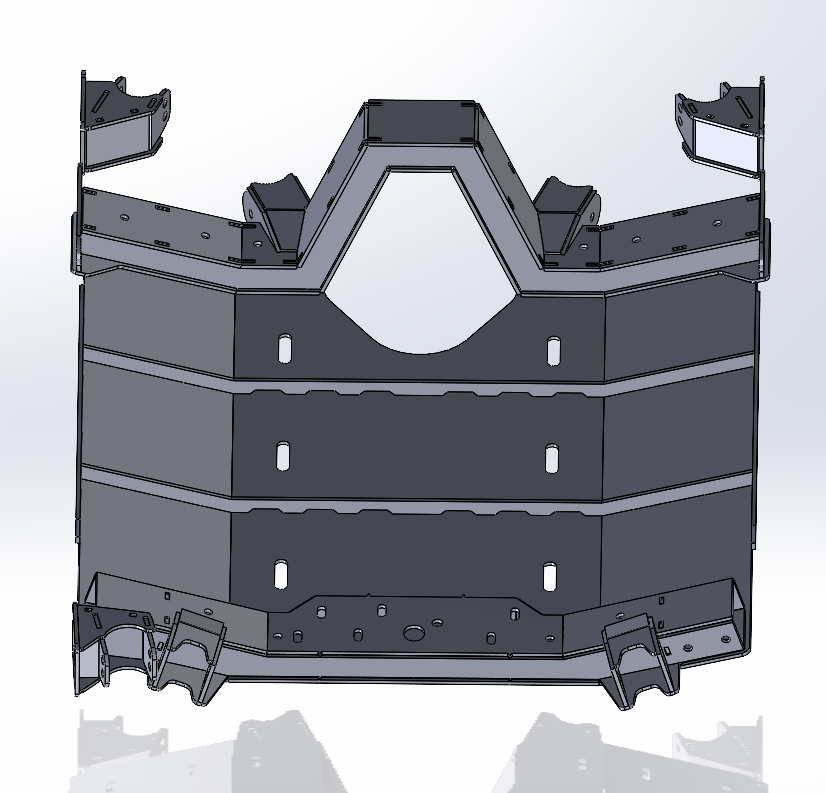

Jeep Wrangler JKU 3-Link Front / Triangulated 4-Link Rear Belly Pan & Crossmember Bracket Kit – DXF Files

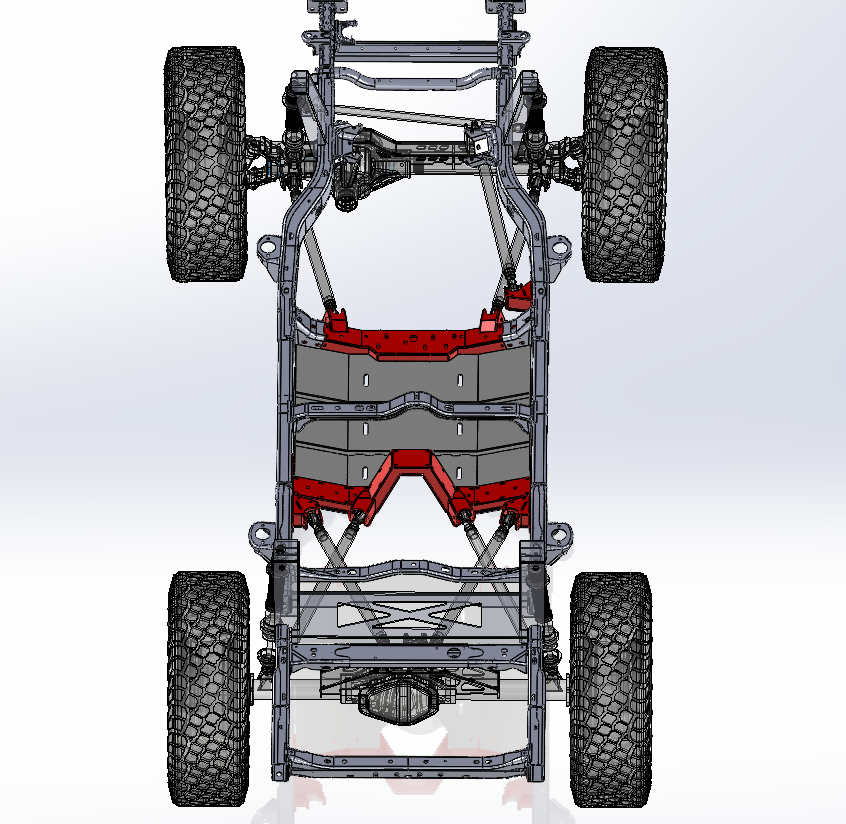

This DXF file kit provides the core structural brackets and crossmembers required to convert a 2012–2018 Jeep Wrangler JKU (4-door only) to a 3-link front suspension with a triangulated 4-link rear, while integrating a heavy-duty belly pan / skid plate system. All components are plasma-table friendly, flat-cut parts featuring tab-and-slot construction for accurate alignment and straightforward fabrication with no sheet-metal bending required.
Designed for serious builders performing axle swaps or full suspension redesigns, this kit replaces the factory front crossmember with a bolt-in long-arm bracket crossmember and adds a rear triangulated 4-link crossmember paired with a heavy duty skid plate.
What’s Included (DXF Files)
This is a complete DXF file kit containing all bracketry required for the system below:

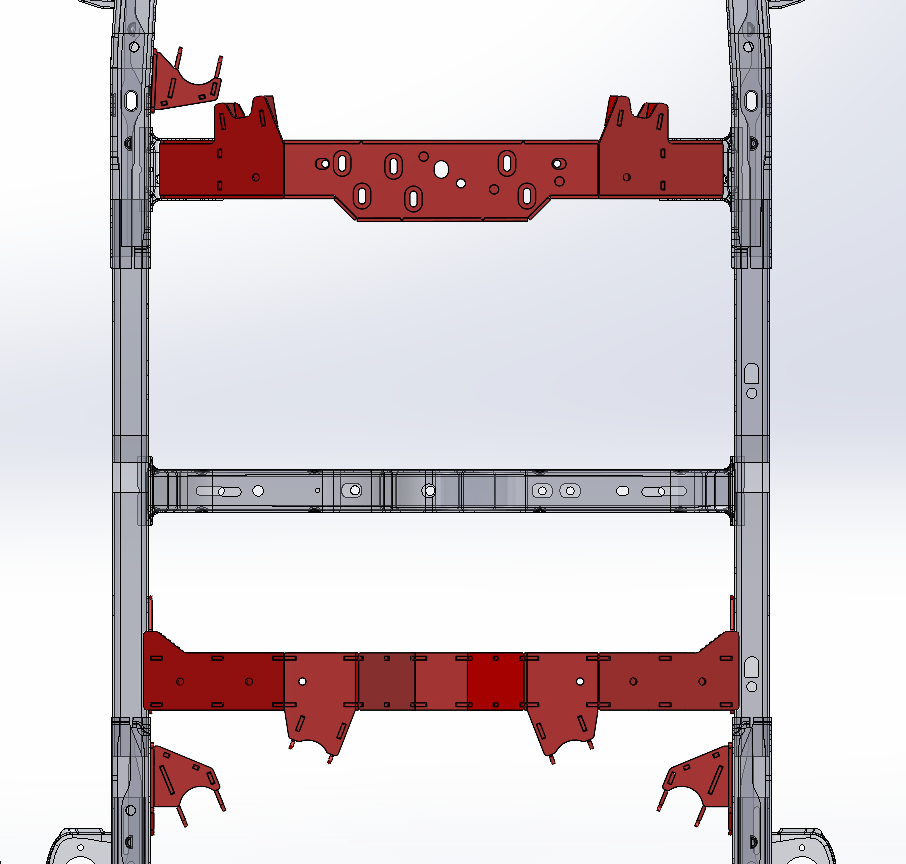

🔹 Bolt-in front crossmember assembly (factory replacement)
🔹 Front upper link mount (3-link configuration)

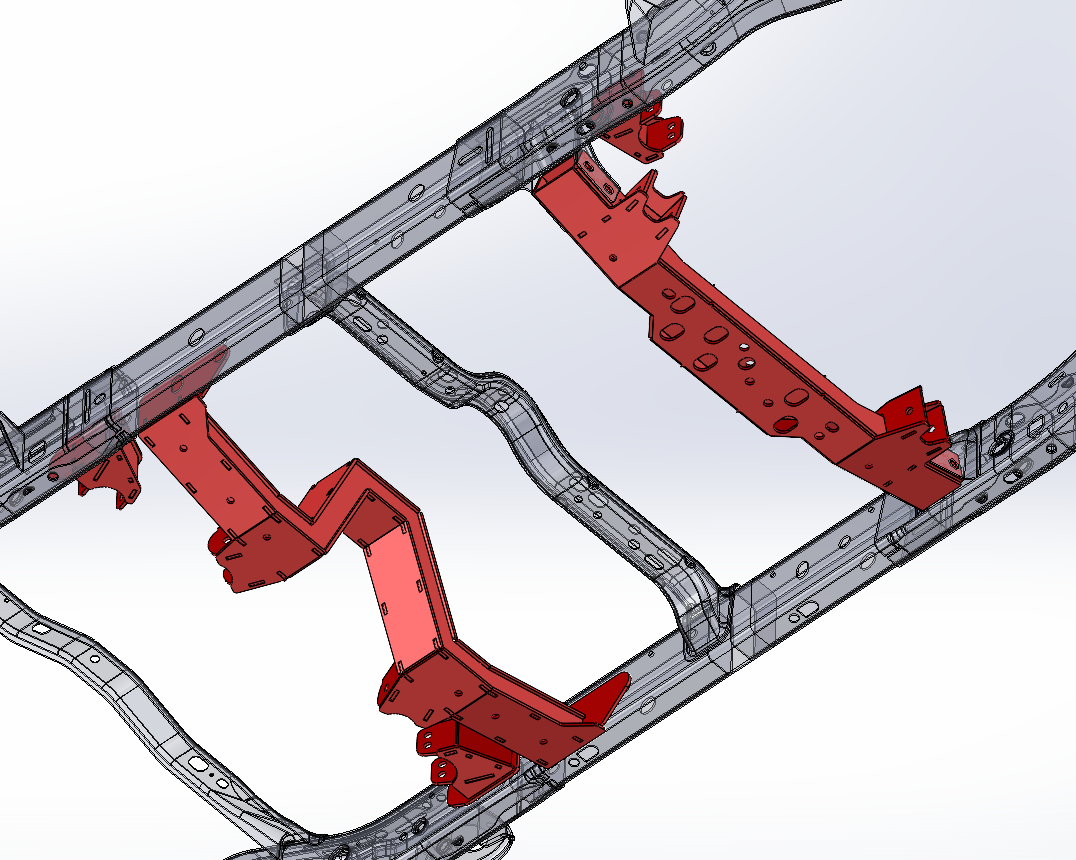

🔹 Rear triangulated 4-link frame-side crossmember
🔹 Pair of rear frame-side upper link mounts

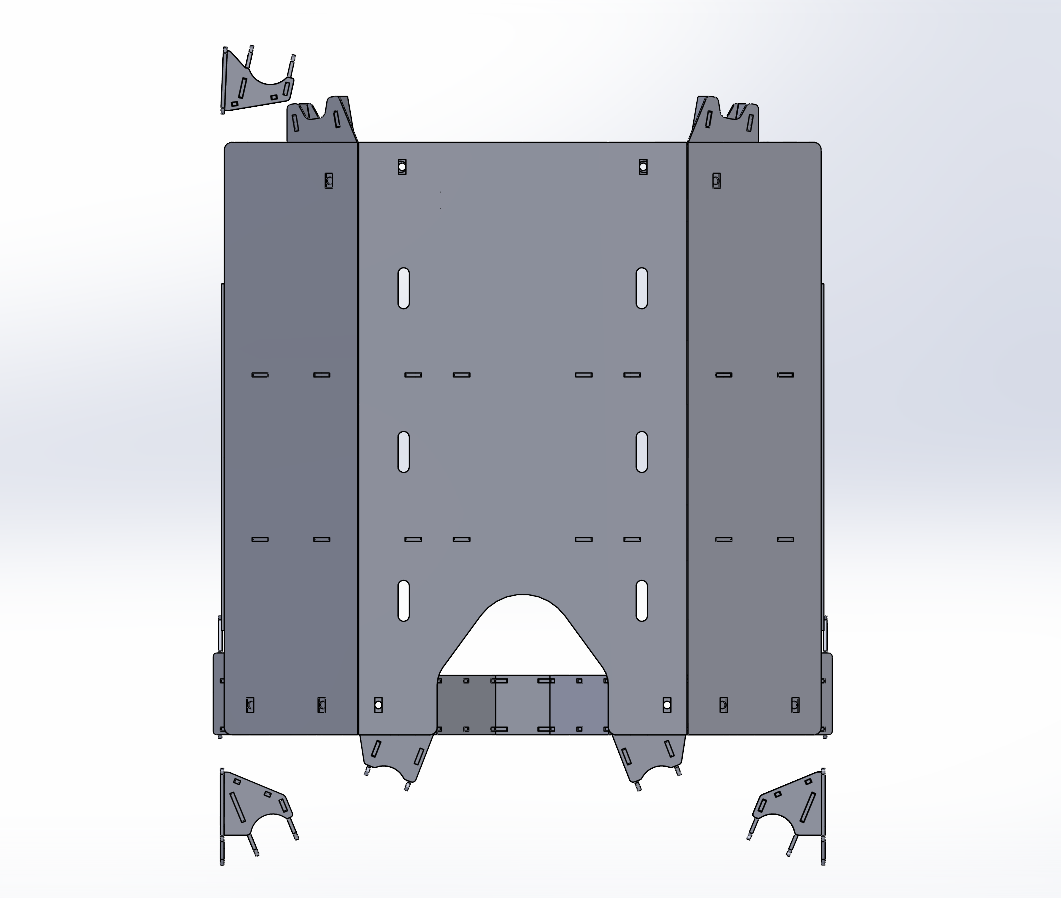

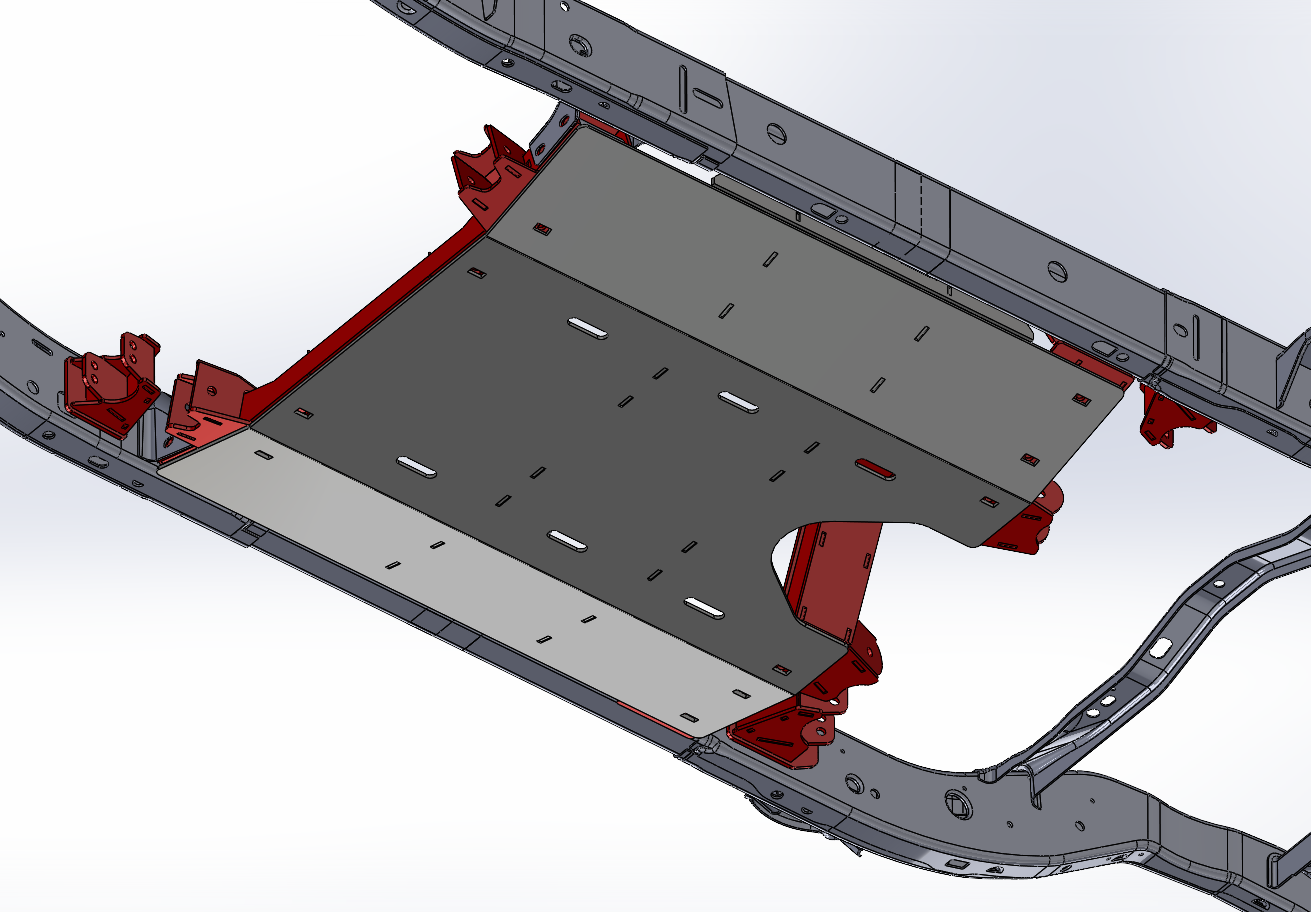

🔹 Belly pan / skid plate assembly (cut from 1/4" steel)
Documentation:

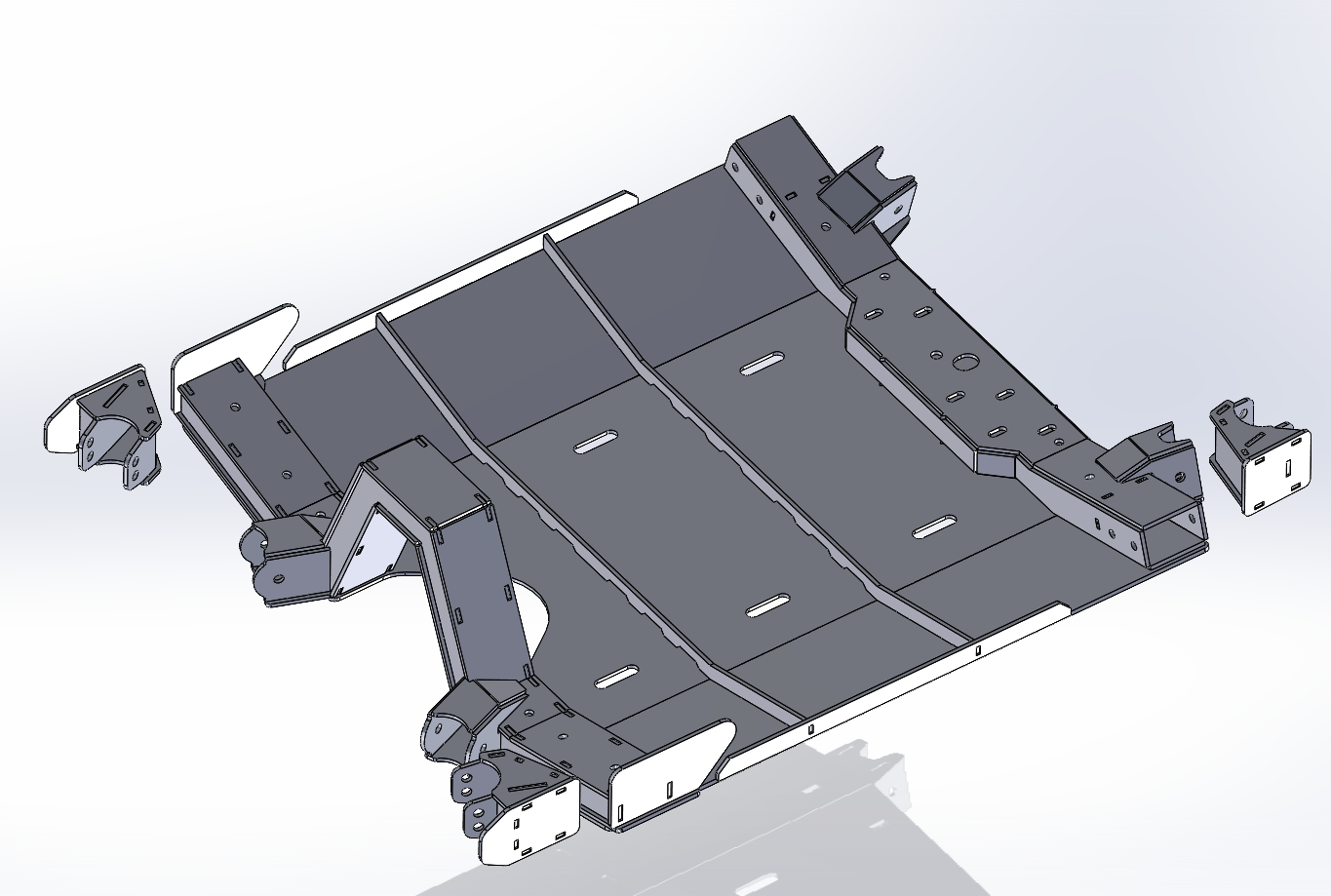

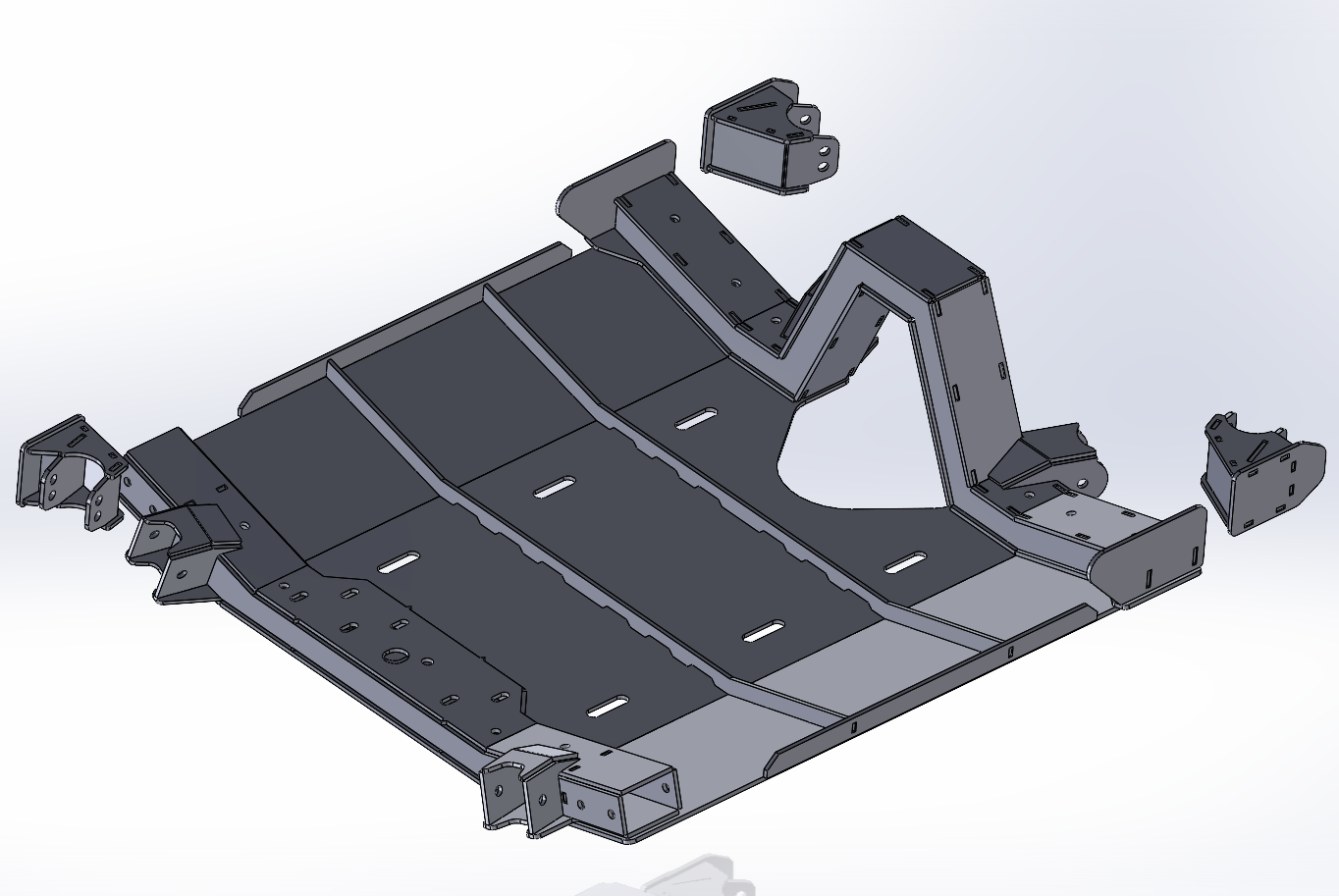

🔹 Exploded assembly views illustrating component orientation and fitment
🔹 Basic fabrication and installation guidance to assist with layout and hardware selection
Material & Fabrication Design:
🔹 Material requirement: Approximately one full 4' × 8' sheet of 1/4" steel
🔹 Entire kit is designed to be cut from 1/4" steel, including all brackets and skid plate components
🔹 Fully tab-and-slot construction for precise alignment and strong weld joints
🔹 100% plasma-table friendly — all parts are flat-cut
🔹 No sheet metal bending required anywhere in the kit
Design & Compatibility:
🔹 Designed specifically for 2012–2018 Jeep Wrangler JKU (4-door only)
🔹 Compatible with 2-5/8" wide joints (Johnny Joints, Heim joints, Flex joints, etc.)
🔹 9/16" bolt holes throughout (can be drilled or edited to 5/8" depending on joint selection)

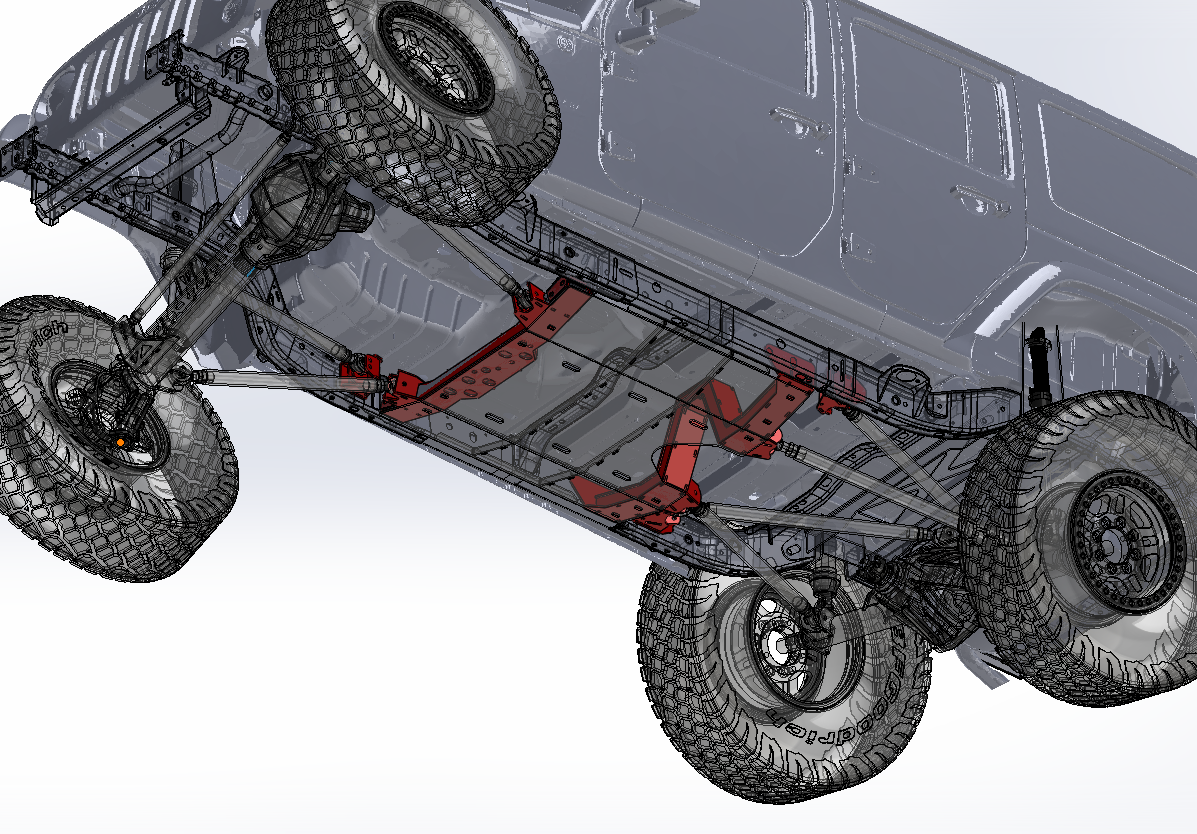

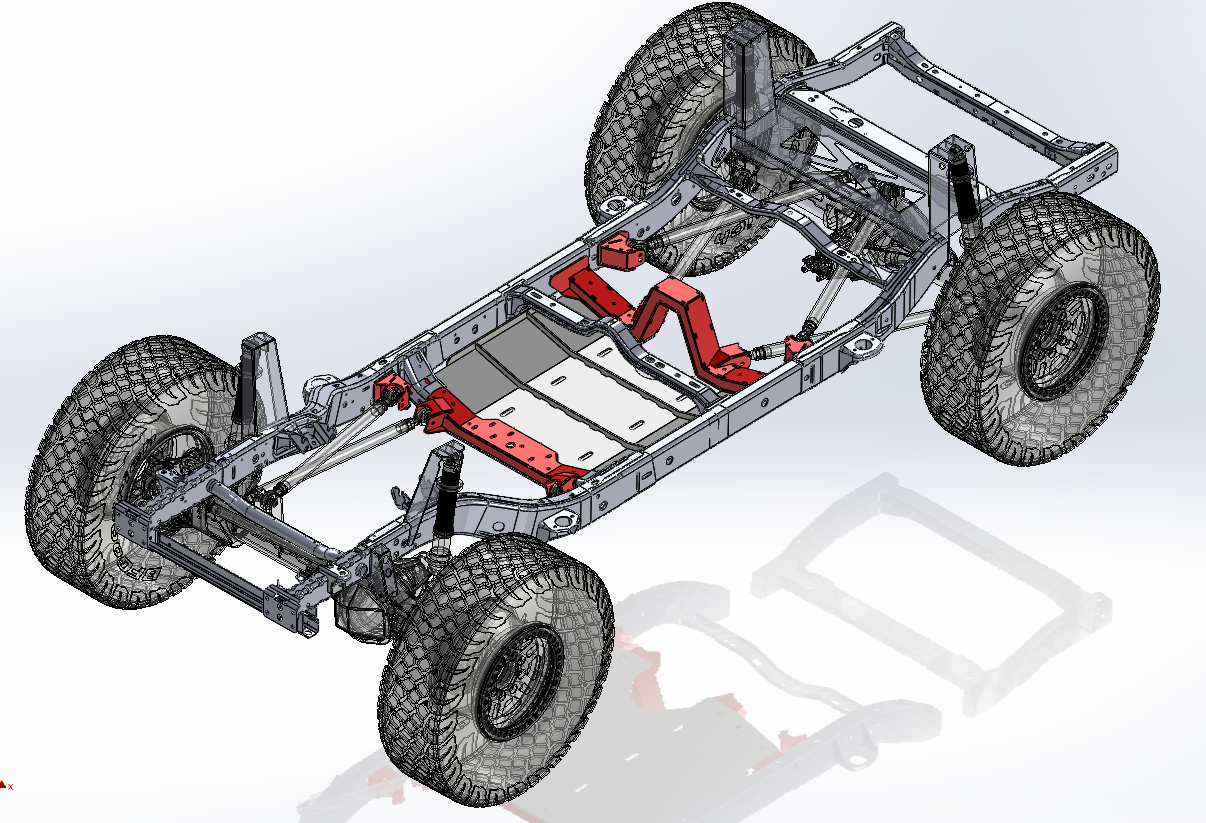

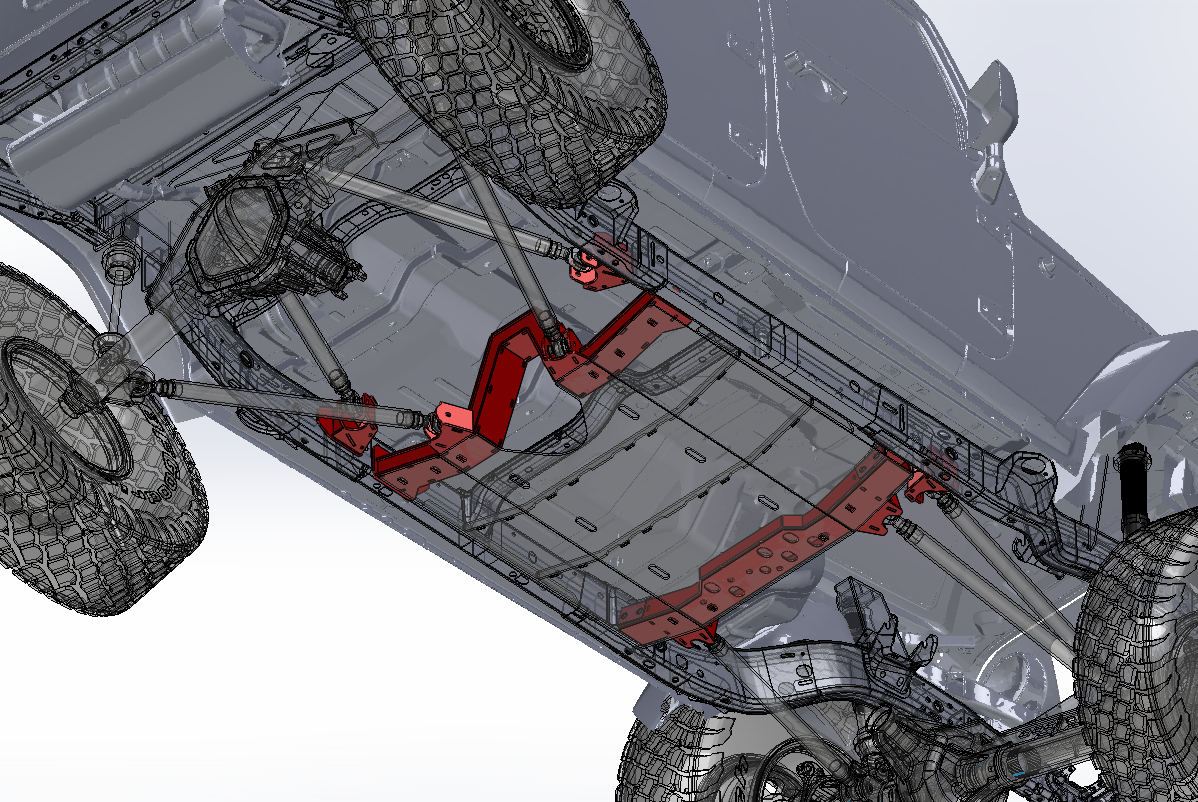

🔹 Optimized for aftermarket axle swaps and long-arm suspension with coilovers or ORI struts
Optional Configuration:
The single front upper link mount can be duplicated during cutting to convert the front suspension to a 4-link setup, ideal for full hydraulic steering applications.
⚠️ Important Notes
🔹 This kit includes brackets, crossmembers, and skid plate DXF files only
🔹 Intended for experienced builders and off-road fabrication projects
These digital DXF files are intended for personal or commercial fabrication use.
Files may not be shared, resold, or redistributed.
No physical brackets, skid plates, hardware, or materials are included.
