Quickly and accurately set your toe angle at home—no alignment shop visit required. This universal tool is perfect for off-road rigs or daily drivers.

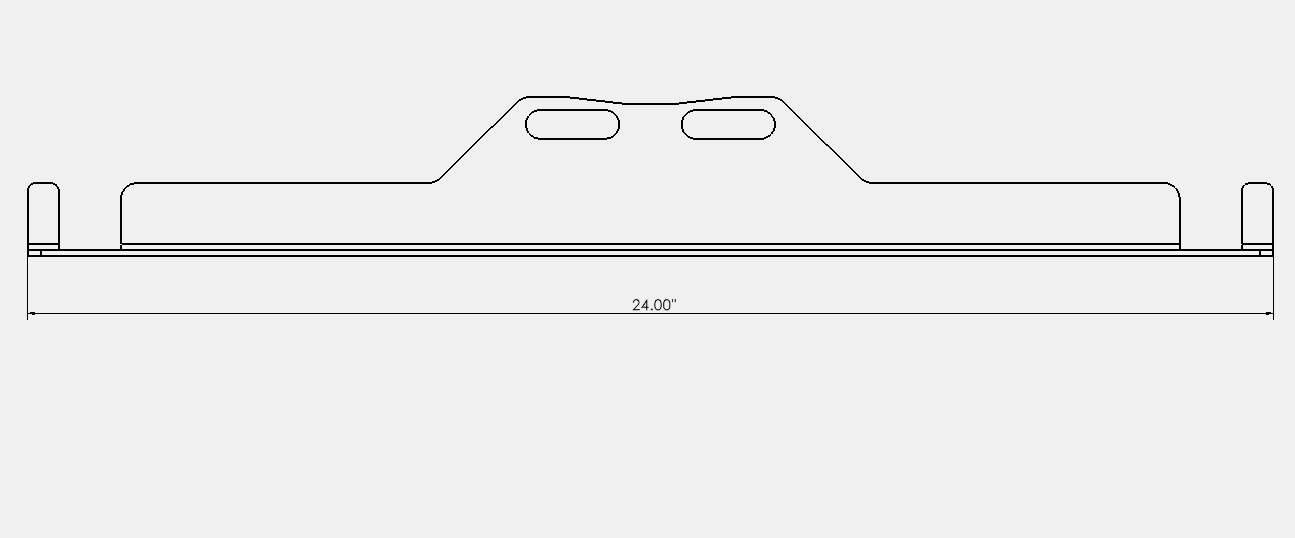

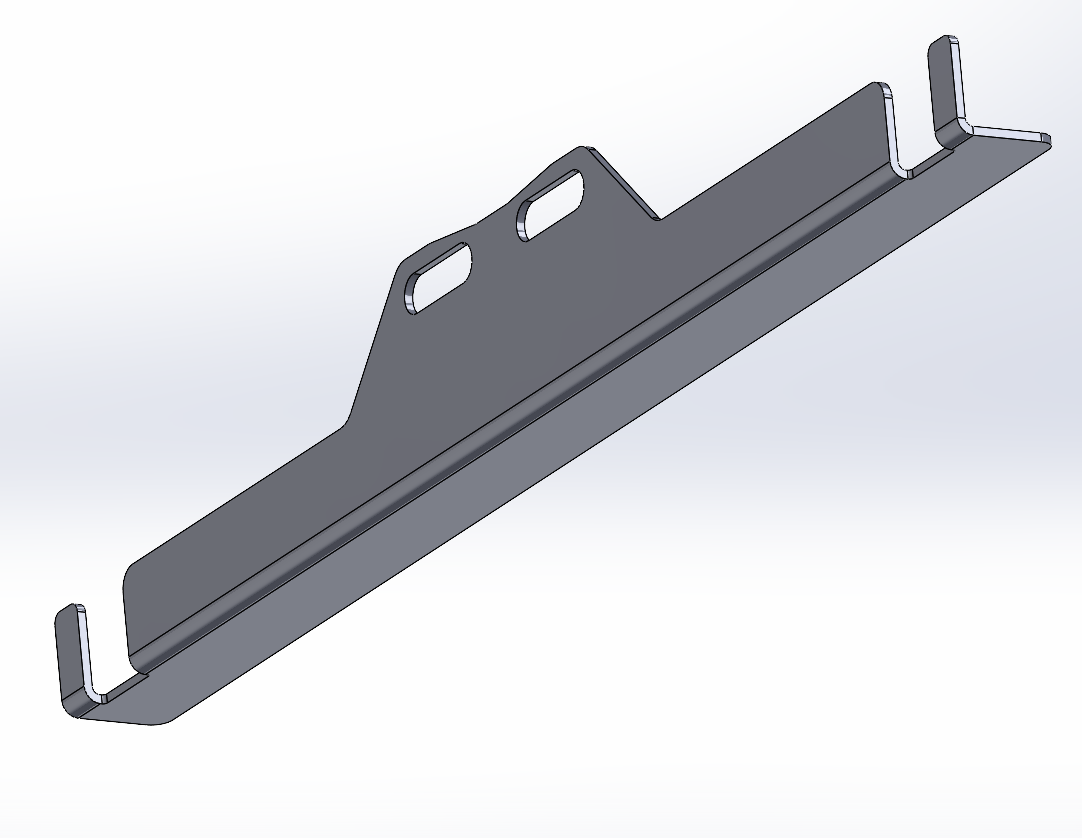

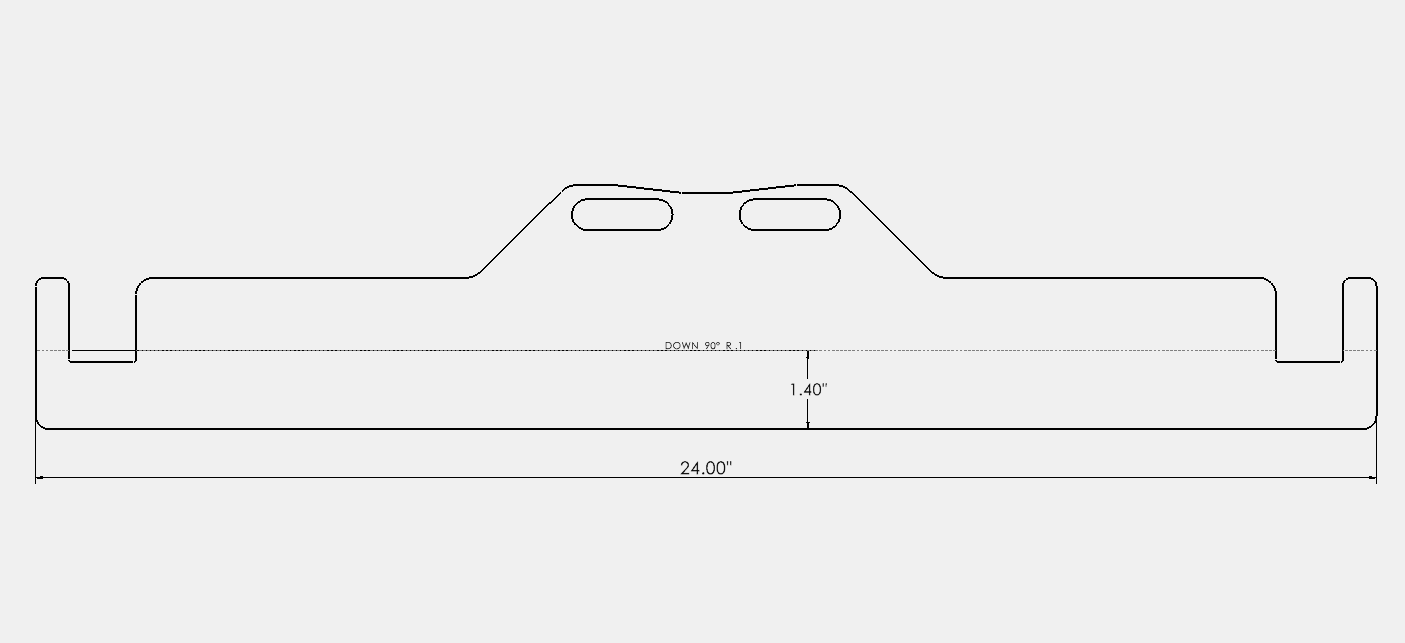

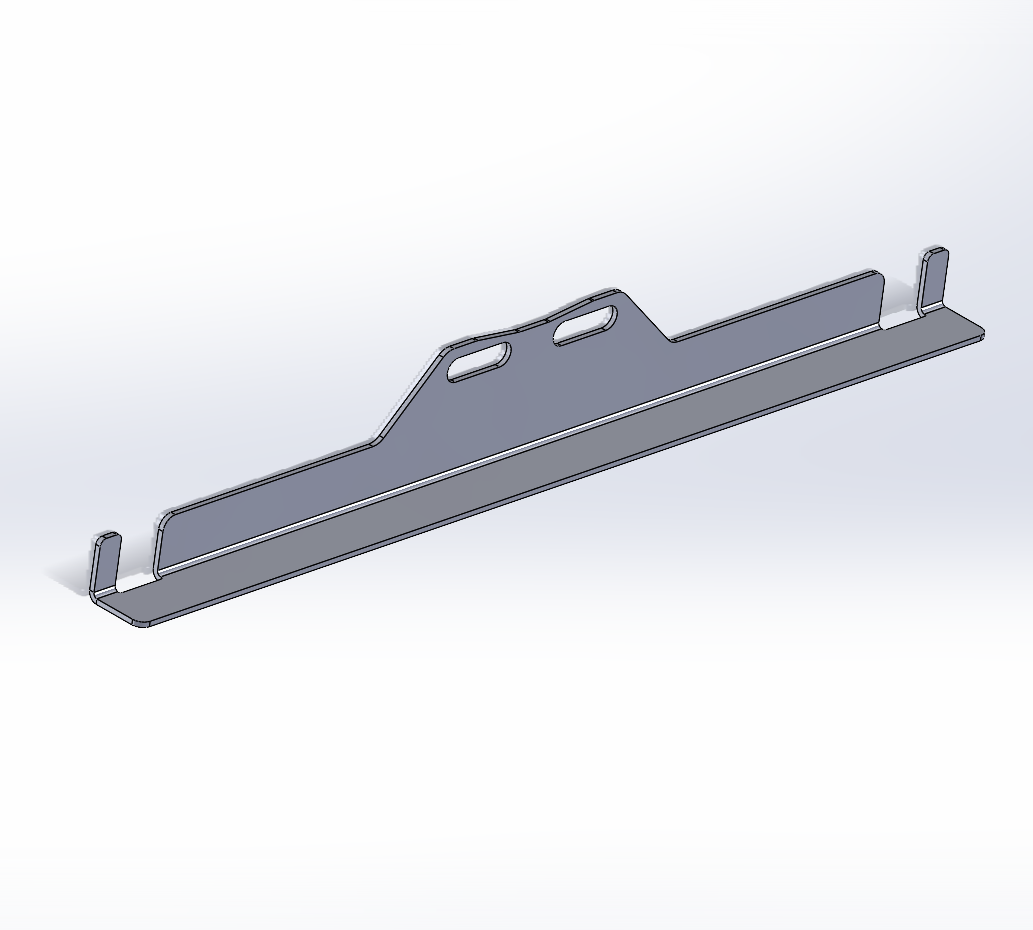

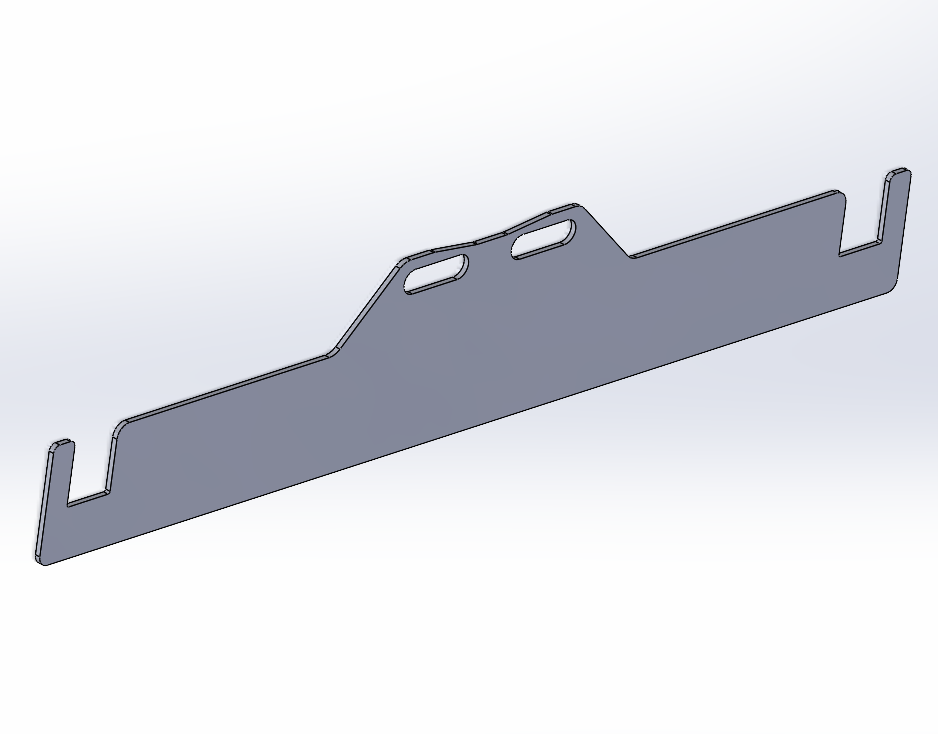

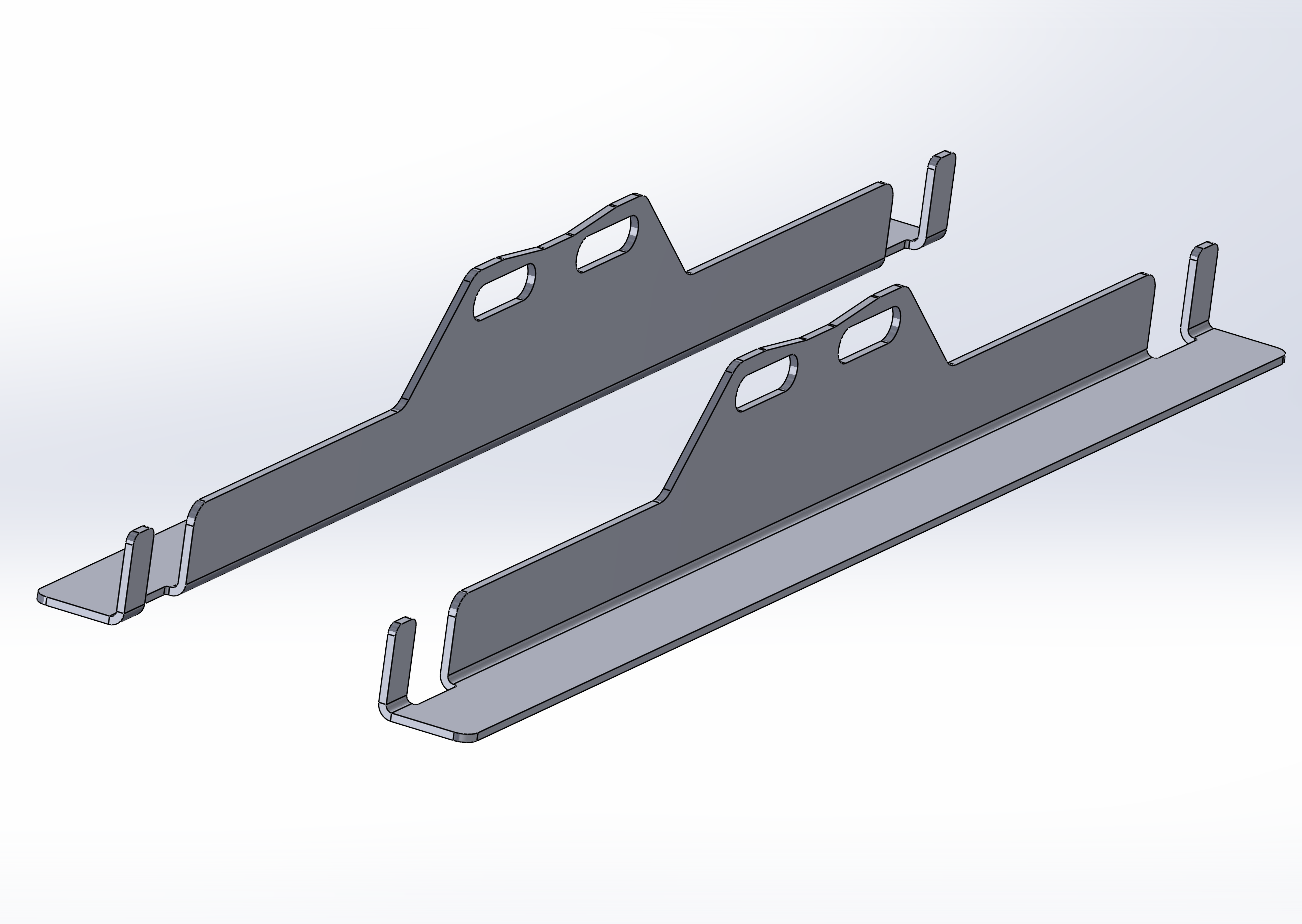

🔹 CNC-ready DXF files for plasma, laser, or waterjet cutting 🔹 Use flat as cut or bend along the marked line for added rigidity • Flat version recommended in 1/8”+ steel • Bent version works in 16 gauge+ 🔹 Works with most off-road and light-truck tie-rod setups 🔹 Simple, accurate way to measure and adjust toe after suspension or steering work 🔹 Great for post-trail checks, race prep, or fresh installs 🔹 Includes one pair in a single DXF file - Metric and Standard Files Included

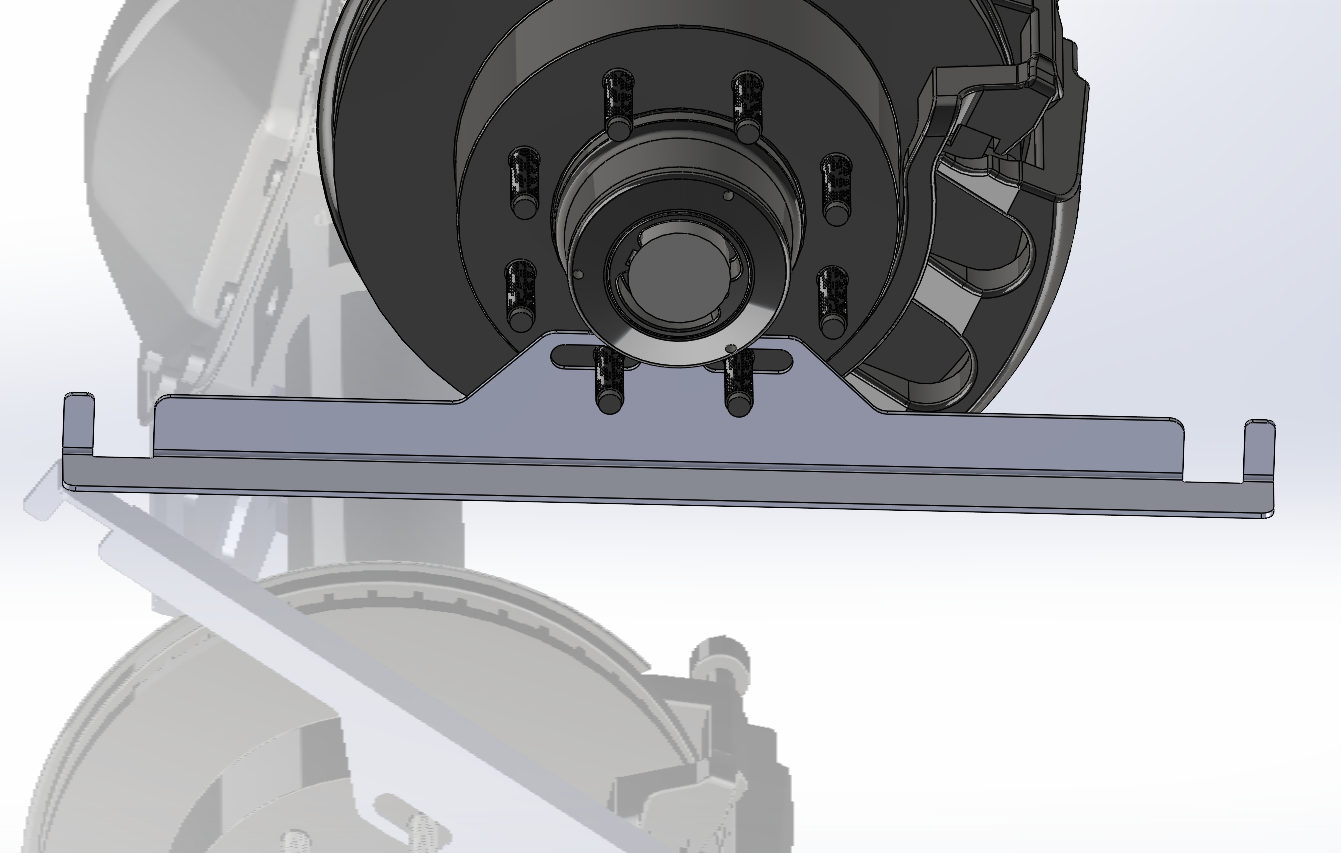

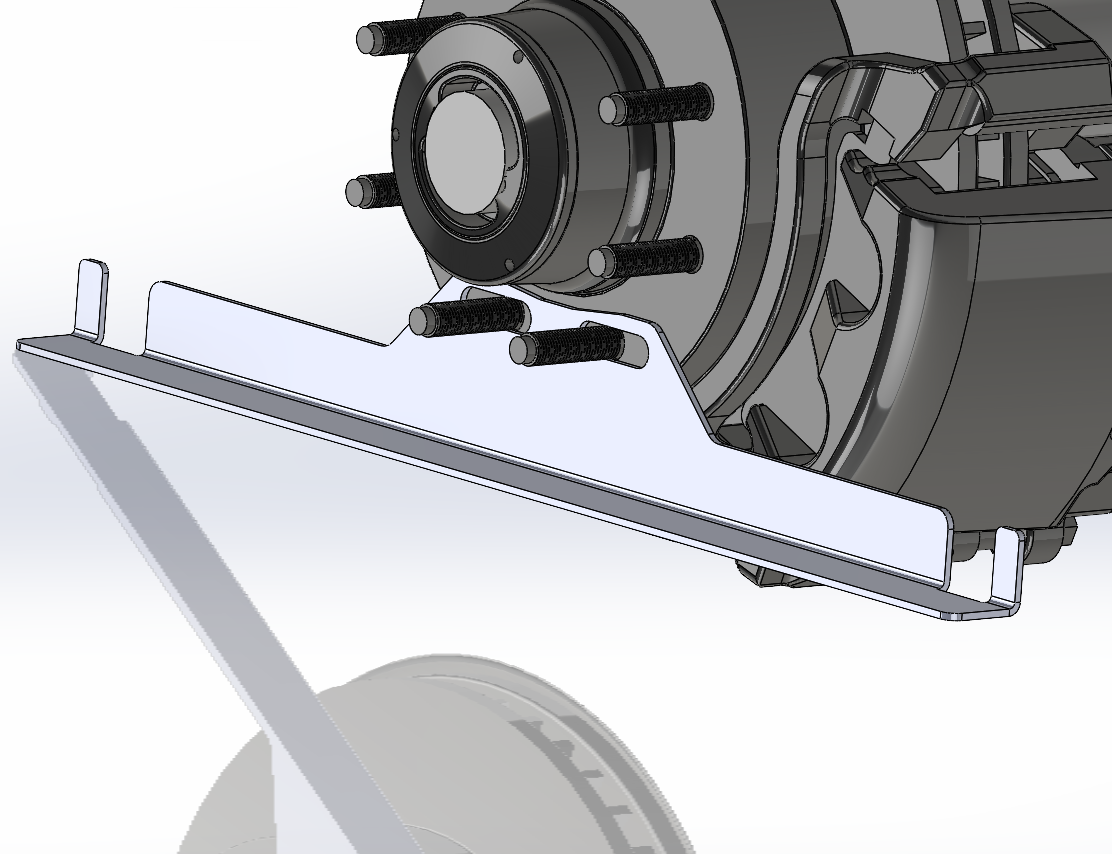

This tool fits 5x5, 8x170, and many other common bolt patterns, but fitment cannot be guaranteed on all patterns or vehicle setups. Some trimming or modification may be required depending on brake calipers, hub size, or bolt pattern.
These digital DXF files are for personal or commercial fabrication use. No physical tool, hardware, or materials are included.
