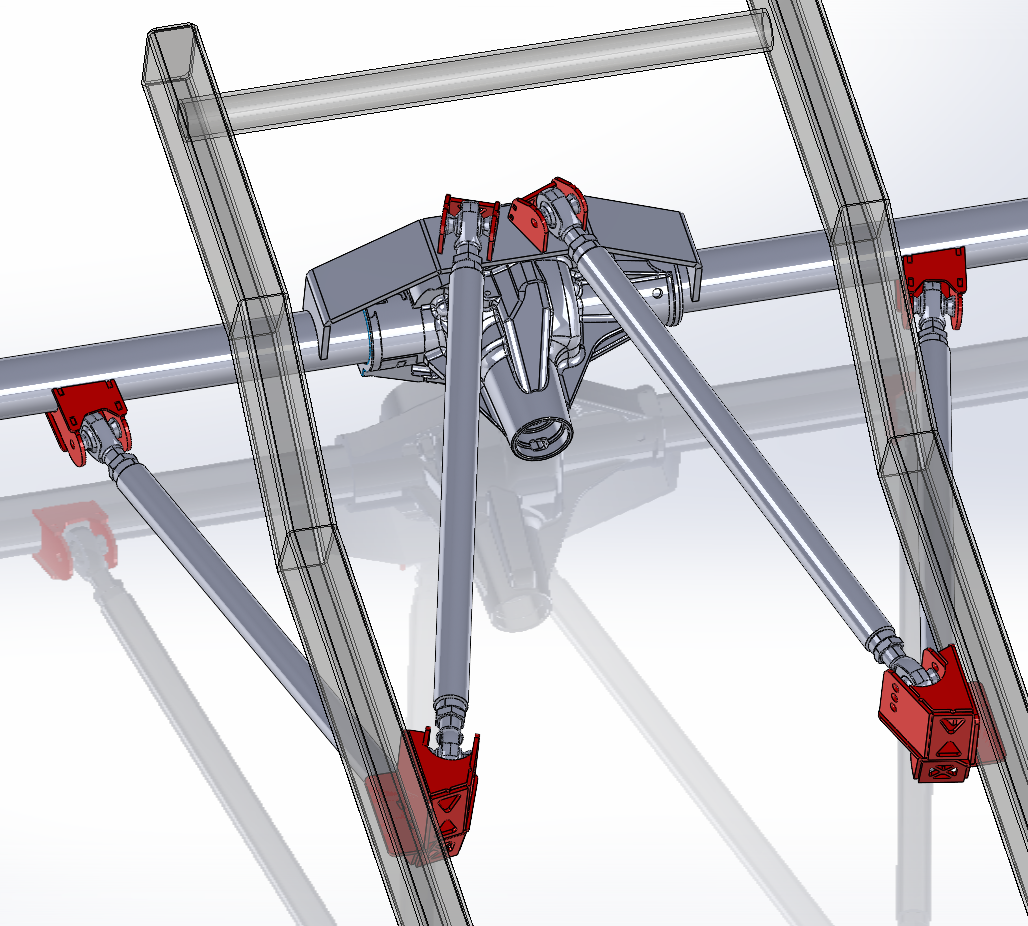

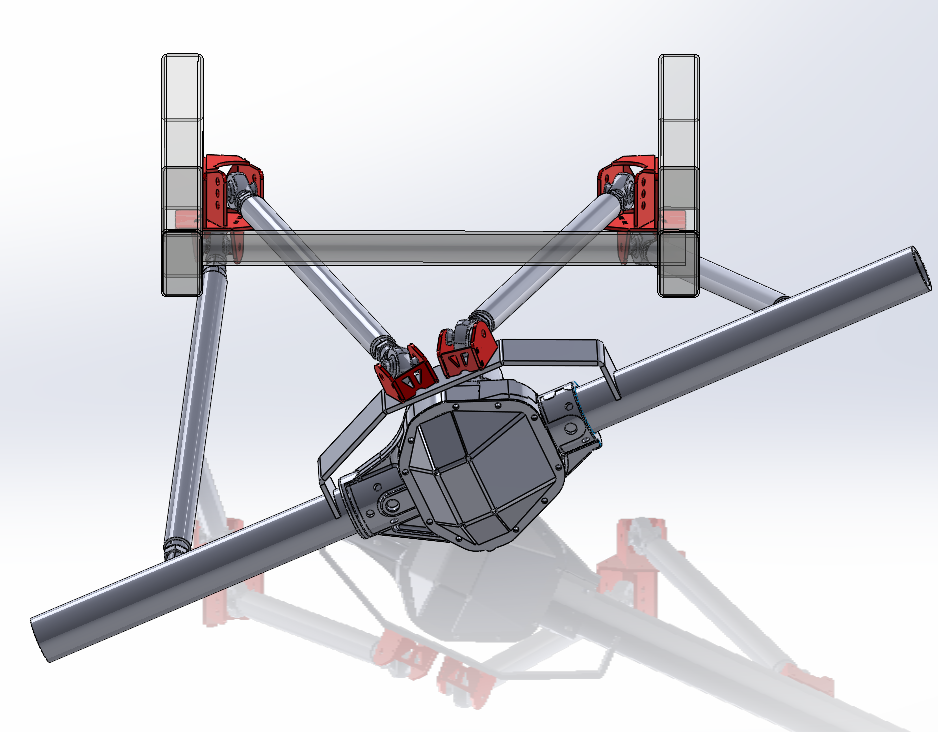

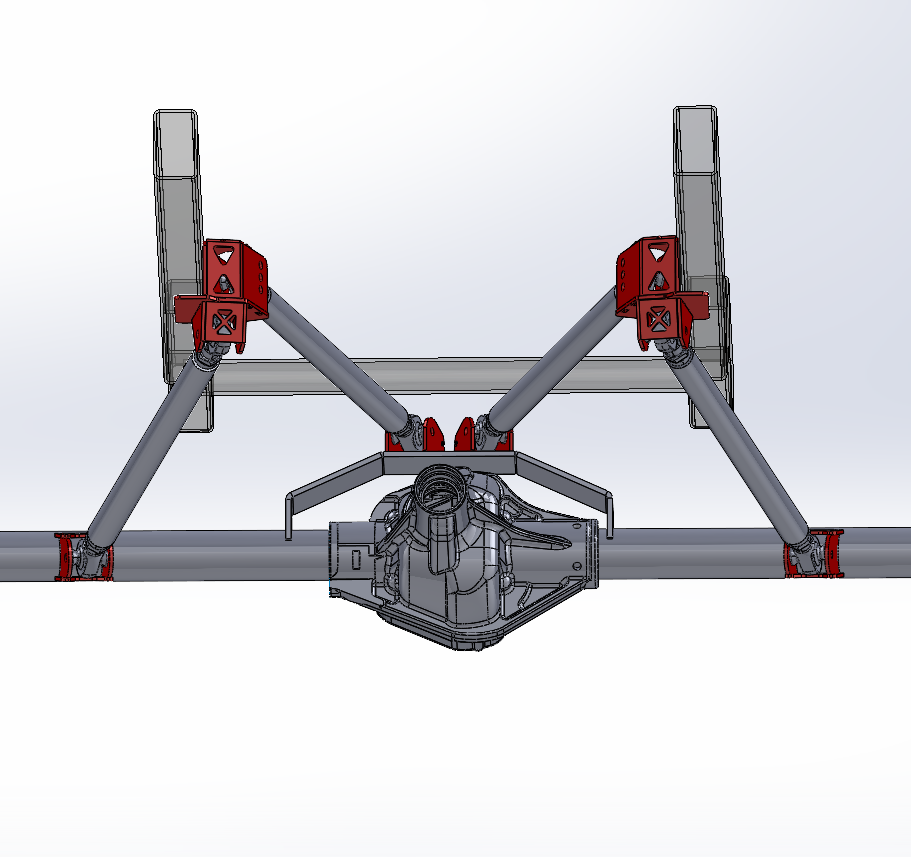

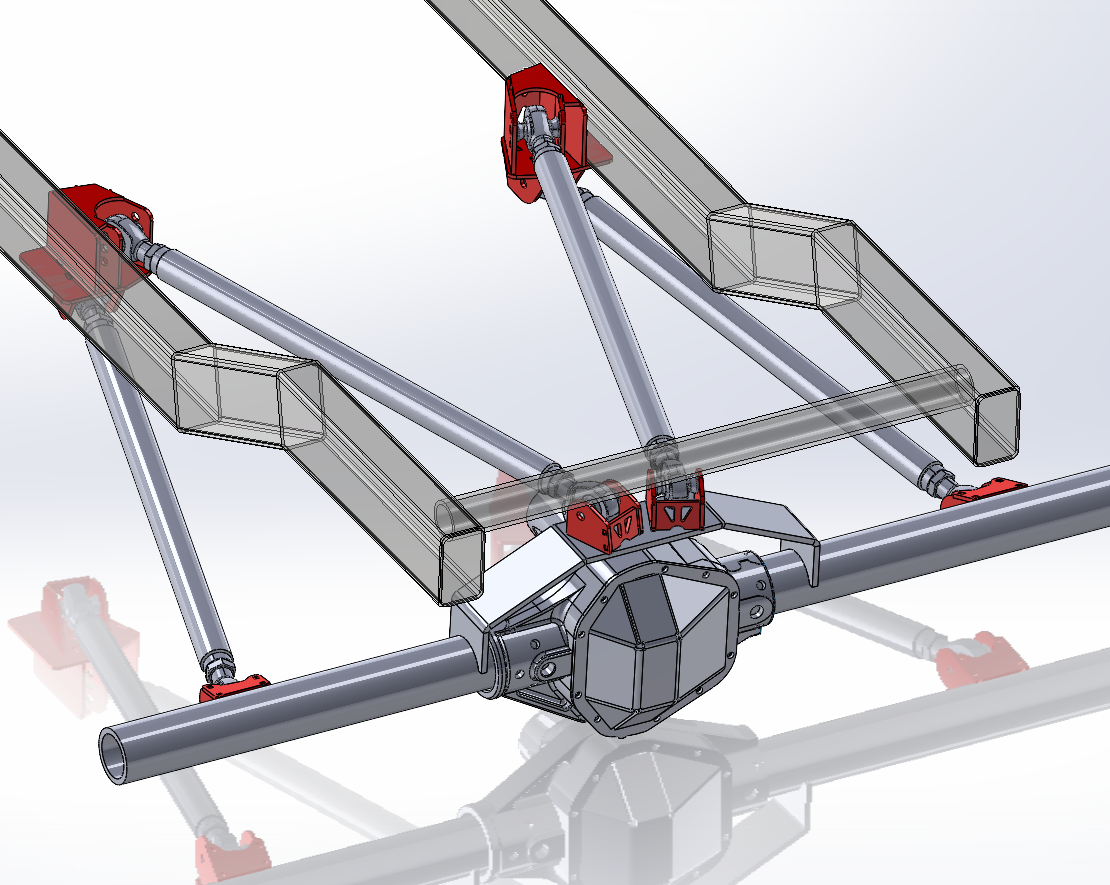

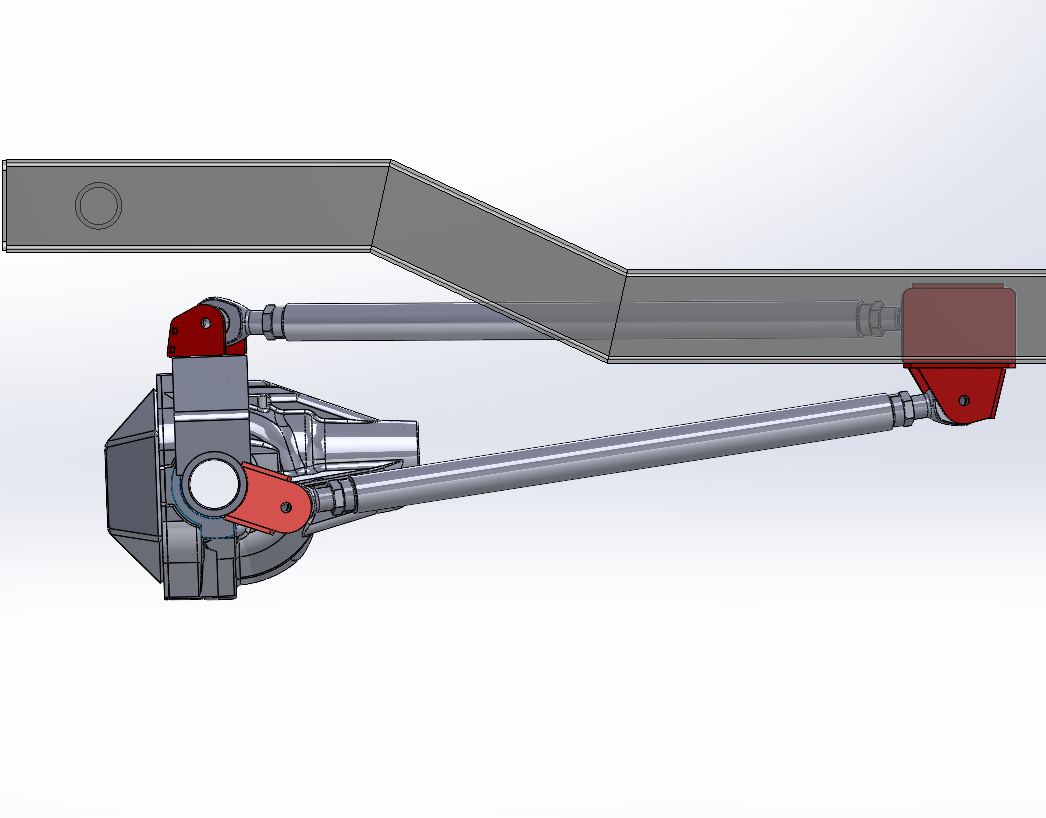

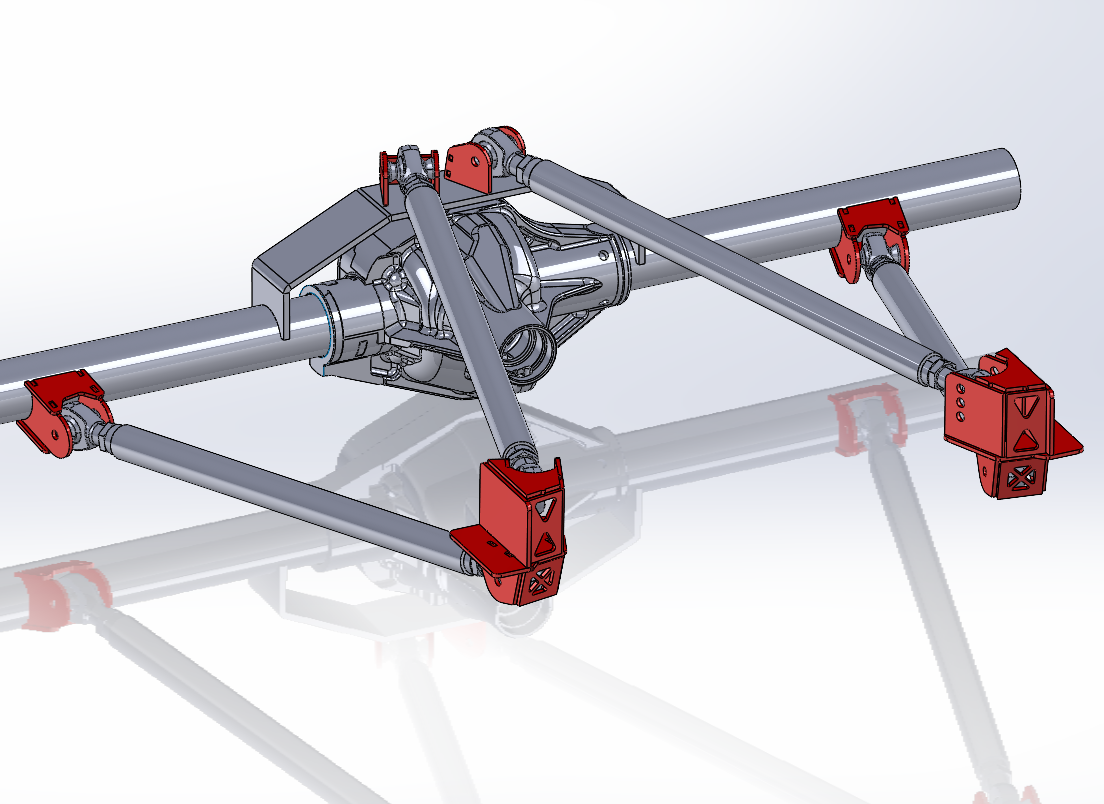

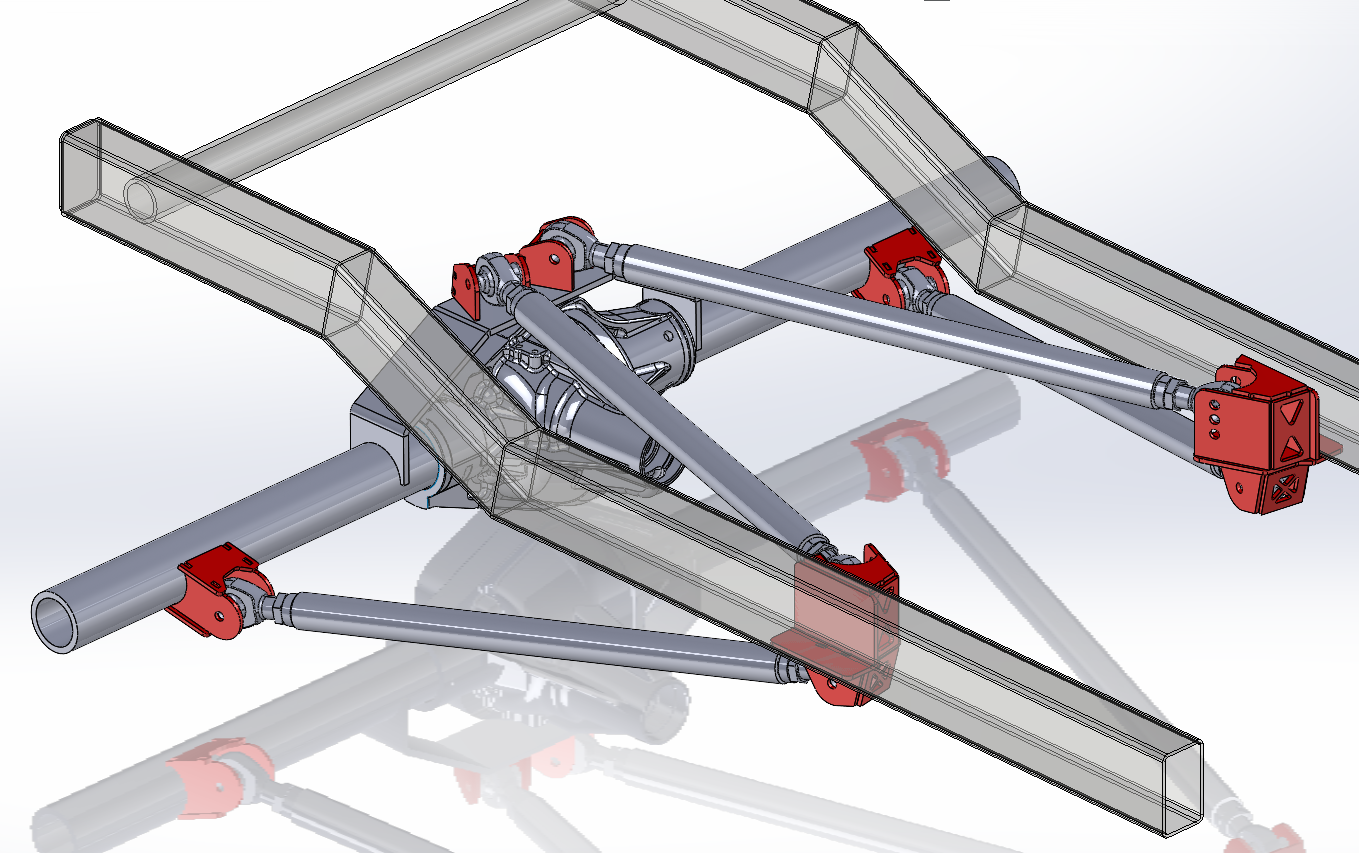

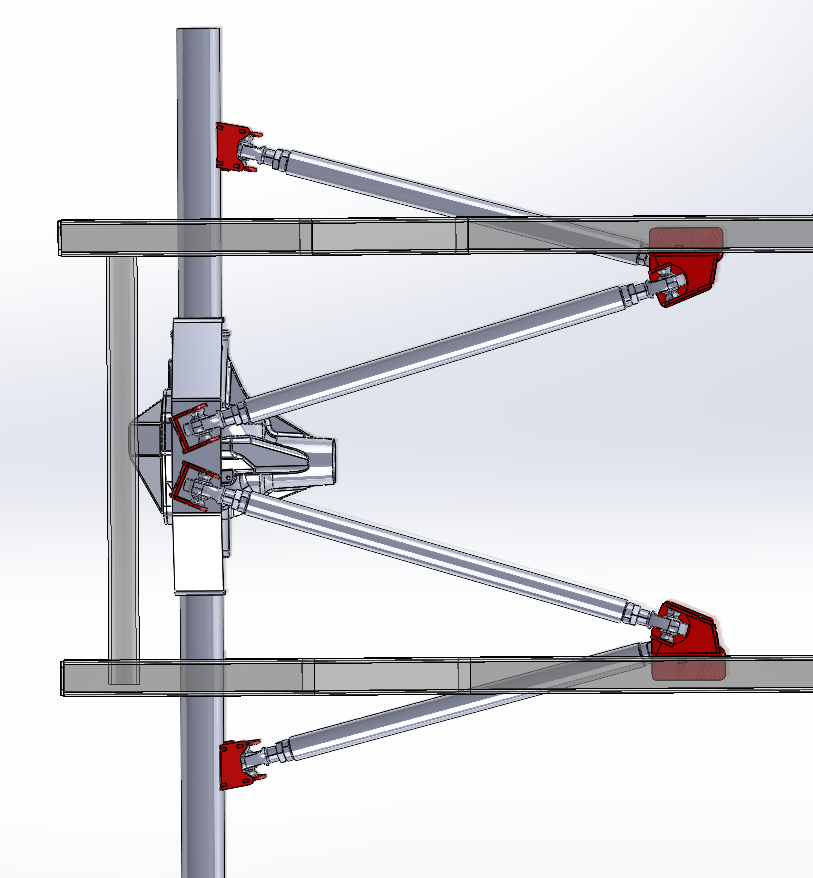

Designing a custom suspension system for your off-road rig, buggy, or project vehicle? This complete DXF file package provides all the bracket files needed to fabricate a strong triangulated 4-link setup—perfect for axle swaps or upgrading from your existing suspension system.

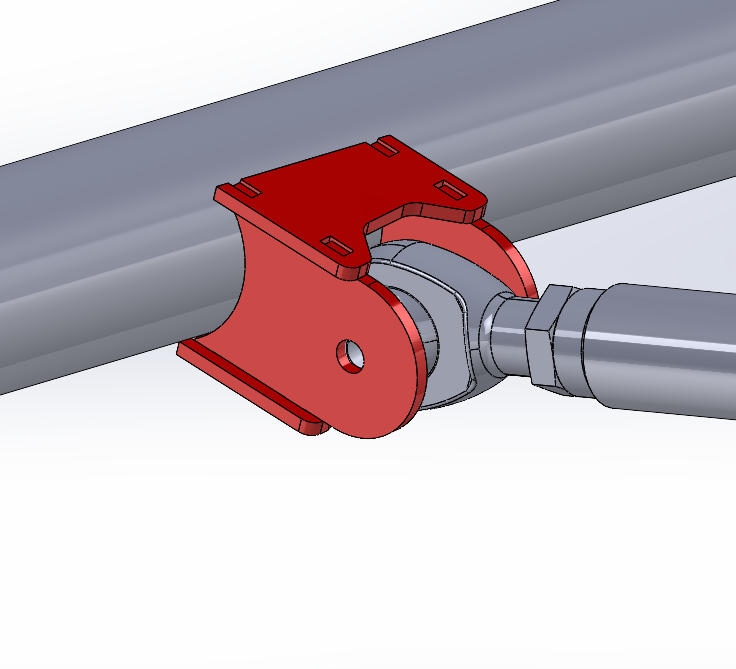

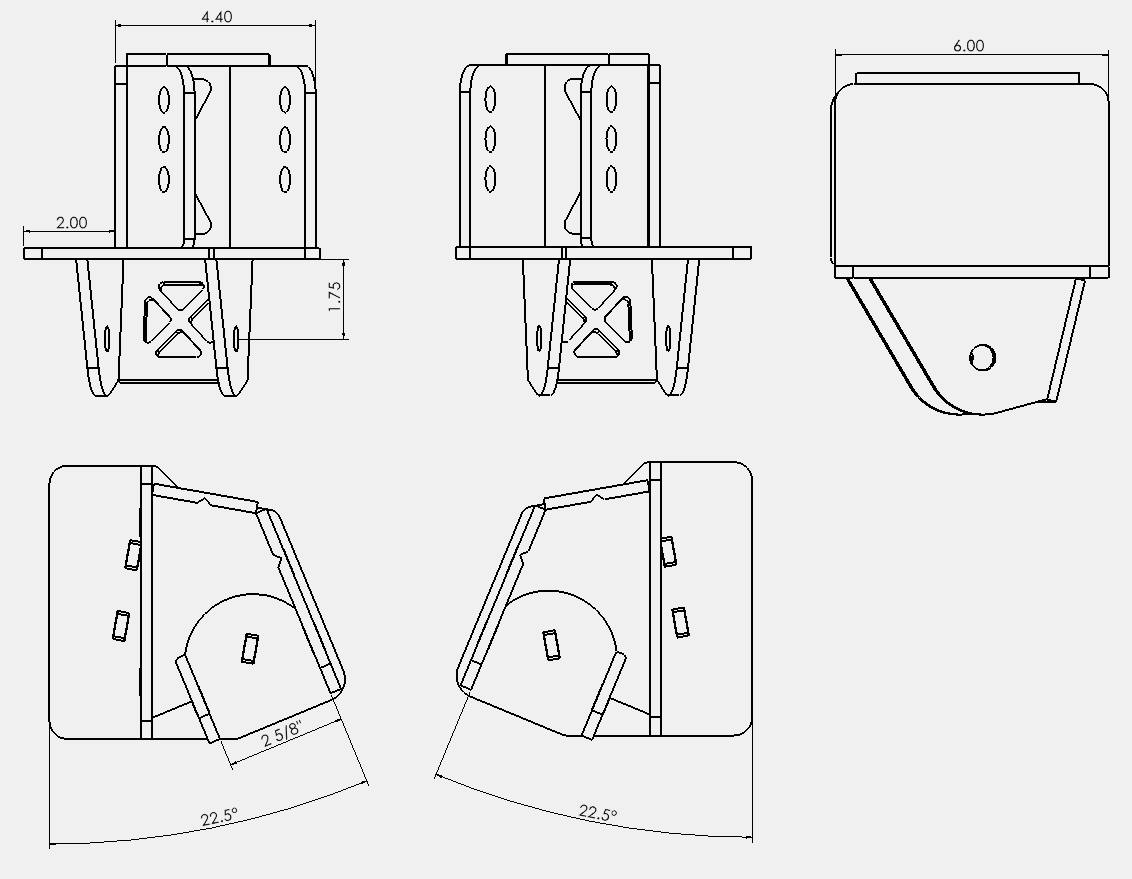

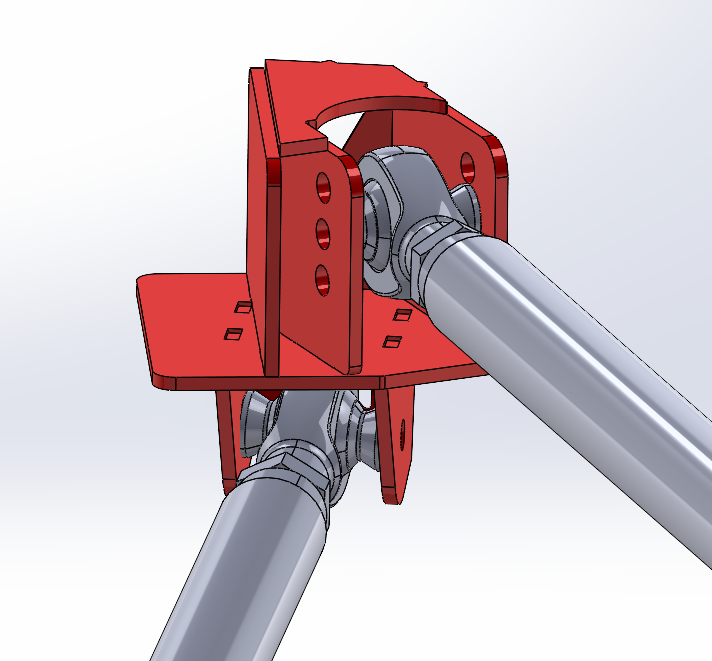

🔹 CNC-ready DXF files optimized for plasma, laser, or waterjet cutting from 1/4" steel 🔹 Includes: • Dual frame-side upper and lower link mounts • Upper axle-side link mounts • Lower axle-side link mounts 🔹 Compatible with common 2.625” wide joints (Johnny Joints, Heim Joints, Flex Joints, etc.) 🔹 9/16” bolt holes – easily drilled larger if needed. Lower axle side brackets designed for 3.5 inch axle tube (can be modified) 🔹 Plasma-friendly tab-and-slot design for simple cutting, fitment, and welding—no bending required
These digital DXF files are intended for personal or commercial fabrication use. No physical brackets, hardware, or materials are included with this listing.
